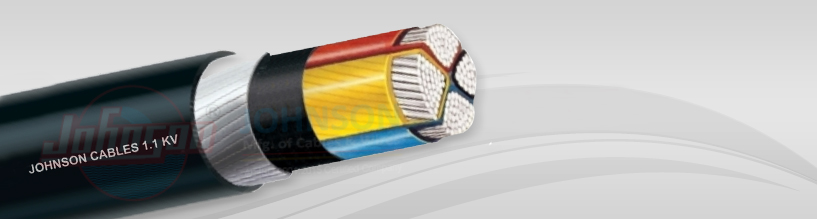

3.5 core Aluminium / Copper

SIZE	NOMINAL INSULATION THICKNESS		MINIMUM INNER SHEATH THICKNESS	MINIMUM OUTER SHEATH THICKNESS	APPROX. OVERALL DIAOF CABLE ±2MM	APPROX. WEIGHT OF CABLE		MAX. CONDUCTOR DC RESISTANCE at 20' C		NOMINAL CURRENT RATING ALUMINIUM CONDUCTOR		NOMINAL CURRENT RATING COPPER CONDUCTOR
						A2XY	2XY	ALUMINIUM	COPPER	GROUND	AIR	GROUND	AIR
	MAIN	HALF
m m2	mm	mm	mm	mm	mm	Kg/Km		Ohm/Km		AMPS
3C X 25 + 16	0.90	0.70	0.30	2.00	22.00	580	1120	1.200	0.727	96	93	121	119
3C X 35 + 16	0.90	0.70	0.30	2.00	24.00	700	1400	0.868	0.524	116	116	146	147
3C X 50 + 25	1.00	0.90	0.30	2.00	27.50	880	1880	0.641	0.387	140	140	171	178
3C X 70 + 35	1.10	0.90	0.40	2.20	31.50	1200	2620	0.443	0.268	171	175	211	225
3C X 95 + 50	1.10	1.00	0.40	2.20	35.00	1500	3490	0.320	0.193	201	217	251	278
3C X 120 + 70	1.20	1.10	0.40	2.20	39.50	1800	4320	0.253	0.153	226	250	286	318
3C X 150 + 70	1.40	1.10	0.50	2.40	43.00	2200	5230	0.206	0.124	256	285	316	364
3C X 185 + 95	1.60	1.10	0.50	2.60	47.50	2750	6580	0.164	0.0991	286	330	356	421
3C X 240 + 120	1.70	1.20	0.60	2.80	52.00	3500	8500	0.125	0.0754	327	393	411	500
3C X 300 + 150	1.80	1.40	0.60	3.00	57.00	4250	10600	0.100	0.0601	371	453	461	572
3C X 400 + 185	2.00	1.60	0.70	3.40	65.00	5450	13830	0.0778	0.0470	429	529	521	660
