| Welding Cables Is Known For Its Flexibility And Durability And Many Automatic And Manual Welding Applications
Require The Cable To Hold Up To Repeated Movement Over Rough Surfaces |
| TYPES OF CABLES
|
: |
SINGLE CORE ULTRA FLEXIBLE ANNEALED PLAIN ELECTROLYTIC GRADE COPPER WELDING
CABLES |
| DESIGNATION
|
: |

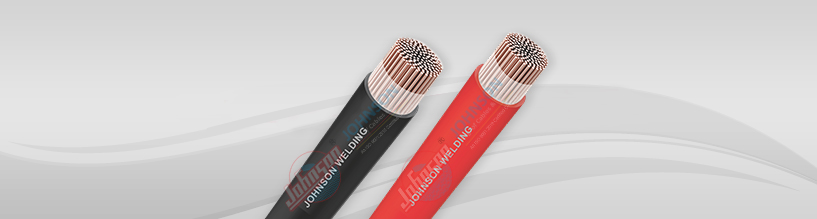

NBR SINGLE SHEATHED ROUND ULTRA FLEXIBLE COPPER WELDING CABLES
|
| COPPER |
: |
ULTRA FLEXIBLE ANNEALED ECCOPPER CONDUCTOR (CLASS 6 & CLASS 5) IEC 60228,IS
8130
|
| SEPARATOR |
: |
POLYESTER TAPE
|
| COVERING |
: |
NBR SINGLE SHEATHED ULTRA FLEXIBLE NITRILE BUTADIENE RUBBER (IS 6380/1984)
|
| MECHANICAL PROPERTY (NBR) |
: |
TENSILESTRENGTH : 10.0 N/MM2 (Min.) , ELONGATION : 300% (Min.) |
| TEMP. RANGE |
: |
(-30° C to + 90° C)
|
| TEST VOLTAGE
|
: |
2500V (ELECTRICAL PROPERTY)
|
| SHEATH COLOR
|
: |
ORANGE, BLACK |
| MIN. BENDING RADIUS |
: |
6 X CABLE DIAMETER
|
| FLAME PROPAGATION |
: |
FLAME RETARDANT ACCORDING TO AS PER IEC 60332-1
|
| ELECTRICAL CHARACTERISTICS DUTY CYCLE AND CURRENT CARRYING CAPACITY
|
: |
THE CURRENT CARRYING CAPACITY OF A WELDING CABLE DEPENDON THE LENGTH OF THE
DUTYCYCLE.
THE DUTY CYCLE IS THE LENGTH OF TIME DURING WHICH A LOADED CURRENT PASSES
THROUGH THE
CABLE OVER AN OPERATION PERIOD OF 5 MINUTES, EXPRESSEDAS A PERCENTAGE OF THAT
PERIOD. |
| STANDARDLENGTH |
: |
100 , 200 , 300 AND 500 METER. ALSO HIGHER LENGTH AVAILABLE ON YOUR
REQUEST(+/-5%) |
| CABLES FEATURES
|
: |
- FLEXIBILITY UNDER ROUGH, OPEN DRY, DAMP CONDITIONS.
|
| : |
- OILRESISTANT TO DIN EN 60811-2-1
|
| : |
- HIGH PERFORMANCEULTRA FLEXIBLE WELDING LEAD SINGLE SHEATHED
|
| : |
- SPECIALLY DESIGNED TO EXCELLENT WEATHER RESISTANCE
|
| : |
- FLAME RETARDANT TOIEC 60332-1
|
| : |
- EXCELLENT ULTRA FLEXIBLE TO LAST LONGERIN FLEX
|
| : |
- HIGH RESISTANCE TO CUTS, TEAR AND ABRASION
|
| : |
- VERY GOOD CURRENT CARRYING CAPACITY OF ACCORDING TO REQUIREMENT FOR
WELDING CABLES
THE CABLES ARE AVAILABLE PROGRESSIVE SEQUENTIAL MARKING , BRAND NAME AND
SIZE PRINTED
ON SHEATH
|
| APPLICATON |
: |
SPECIFICALLY DESIGNED FOR MACHINE WELDING AND HAND WELDING TO WORK IN DRY,
DAMP, WET
LOCATIONS AND OUTDOORS. |
| REF. STD.
| : |
IEC 60228, IEC 60245-6, BS 638-4, IS 6380/84, IS 8130, IS 9857, DIN VDE 0295 |
| ISO CERTIFICATION |
: |
IS09001:2015, CE, RoHs, ISO 14001:2015, ISO 45001:2018 |
| PRODUCT CERTIFICATION
|
: |
IS 694:2010  7098 P-1  , TUV RHEINLAND CERTIFICATE No. R60160877 |
